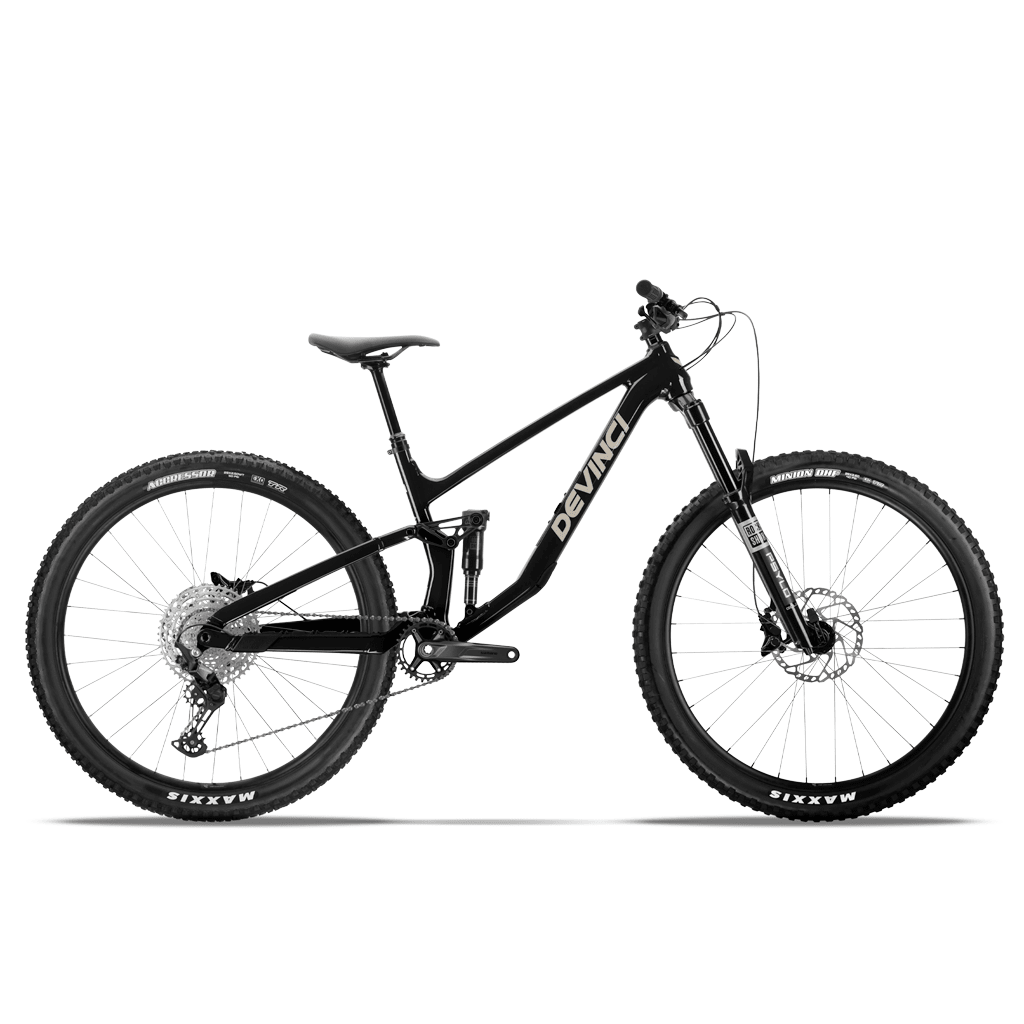

Bike Devinci Troy ST AL Deore 12s 29" - Black Dust

SKU: 210000038361
$3,698.95
$3,593.95
$3,698.95
Size: S
Bike Devinci Troy ST AL Deore 12s 29" - Black Dust - Genetik Sport

Bike Devinci Troy ST AL Deore 12s 29" - Black Dust

Description

Bike Devinci Troy ST AL Deore 12s 29" - Black Dust

Lightning with a bottle cage.

The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought you wouldn’t, fast. Its integrated downtube storage and go get ‘em attitude will lure you into all day rides on “once a year” trails, weekly. Full 29 in M-XL sizes and full 27.5 in XS-S, the ST isn’t trying to be anything it’s not. It’s made in Canada, guaranteed for life and ready to rumble. This bike is proof that with travel, sometimes less is more.

Technical Specifications

Manufacturing

  • Handcrafted in Canada

Frame

  • HEADSET FSA Orbit | 1.5 | Zero Stack
  • SEAT CLAMP Alloy CNC | 34.9mm

Suspension

  • SUSPENSION FORK RockShox Psylo Silver RC | 140mm | 44Offset | 1 Token
  • REAR SHOCK RockShox Deluxe Select 185x47.5 Trunnion

Cockpit

  • HANDLEBAR V2 Pro | B:35mm | R:30mm | W:800mm
  • SADDLE Devinci
  • SEATPOST TranzX Dropper | 31.6mm
  • SEATPOST LEVER TranzX
  • GRIPS Devinci | w/lock-on

Brakes

  • FRONT BRAKE Shimano Deore M4100/MT410 | 2 Pistons
  • REAR BRAKE Shimano Deore M4100/MT410 | 2 Pistons
  • FRONT ROTOR Shimano RT66 | 203mm
  • REAR ROTOR Shimano RT66 | 203mm

Drivetrain

  • REAR DERAILLEUR Shimano Deore M6100 | 12s
  • REAR SHIFTER Shimano Deore M6100 | 12s | I-spec EV
  • CRANKSET Shimano MT5121 | 32T | 170mm
  • BOTTOM BRACKET Shimano BB MT501 | BSA | 68/73mm
  • CASSETTE Shimano Deore M6100 | 12s | 10-51T | Microspline
  • CHAIN KMC X12 | 12s

Wheels

  • FRONT RIM V2 Comp 29 | 29mm inner | TR
  • FRONT HUB Formula DC-611 | Sealed | 6bolts | TA 15x110mm
  • REAR HUB Formula MST-148 | Sealed | 6bolts | TA12x148mm | Microspline
  • REAR RIM V2 Comp 29 | 29mm inner | TR
  • SPOKES Sapim Stainless 14G w/Nylok
  • FRONT TIRE Maxxis Minion DHF | 29x2.5WT | 3C | Exo | TR | MaxTerra
  • REAR TIRE Maxxis Aggressor | 29x2.5 | EXO | TR | Dual Compound

Weight

16.85 kg / 37.15 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

FRAME TECH SPECS

Rear travel 130 mm
Front travel 140 mm
Rear tire clearance 27,5'' x 2.6” / 29'' x 2.5''
Rear hub spacing 12 x 148 Boost
Max & min chainring clearance Max. 34T | Min. 28T
Chainline 55 mm
Derailleur hanger UDH™
Caliper mount 200 mm Post Mount
Seat tube diameter 31.6 mm ID / 34.9 mm OD
Seatpost max insertion XS → 235 mm / S → 265 mm / M → 280 mm / L → 305 mm / XL → 330 mm
Headset Top ZS44 | Bottom ZS56
Cable routing Internal
Rear shock dimension Trunnion | 185 x 47.5 mm
Rear shock hardware Top: NA | Bottom: 40 x 10 mm
Linkage bearing type Enduro™ double-lip sealed
Fork dimensions (Axle-to-Crown measurement/Offset) 551 mm / 44 mm (M, L, XL)
533 mm / 37 mm (XS, S)
Chain guide mount ISCG 05 – 3-Bolt
Frame material Aluminum 6061-T6 | Optimum G04
