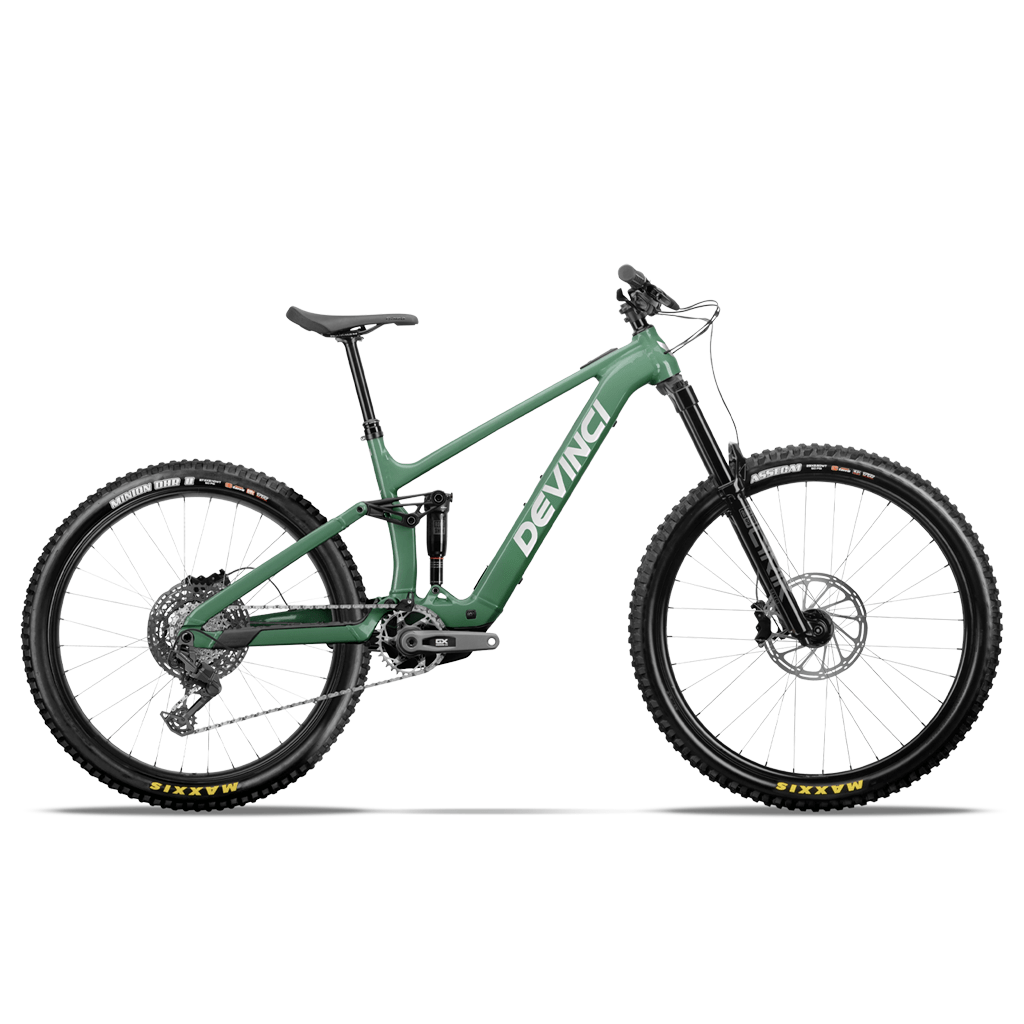

E-Bike Devinci E-TroyLite AL MX Eagle 70 - Sea Green

E-Bike Devinci E-TroyLite AL MX Eagle 70 - Sea Green Want to try it before buying? They're available at the Sentiers du Moulin : Click this link Getting you more on every ride Climb in...
UGS : 210000033844
$5,949.11
$6,998.95
$5,949.11
Size: S
E - Bike Devinci E - TroyLite AL MX Eagle 70 - Sea Green - Genetik Sport

E-Bike Devinci E-TroyLite AL MX Eagle 70 - Sea Green

Description
Description
x

E-Bike Devinci E-TroyLite AL MX Eagle 70 - Sea Green

Want to try it before buying? They're available at the Sentiers du Moulin : Click this link

Getting you more on every ride

Climb in a flash and descend in style with this next generation rig that combines Bosch wattage with the finesse and feel Devinci trail bikes are known for. You’ll sense the power delivered by a Bosch system that’s compatible with a range extender for longer days. More than anything, you’ll notice how subtle the difference is on the way down. An agile made-in-Canada chassis with mixed wheels and suspension kinematics brings the spirit of a Devinci trail bike to the world of power assist. The E-Troy Lite gives you more on every ride.

Technical Specifications

Frame

  • FRAME Aluminum Optimum G04
  • HEADSET FSA Orbit | 1.5 | Zero Stack
  • SEAT CLAMP Alloy CNC | 34.9mm

Suspension

  • SUSPENSION FORK RockShox Lyrik | Rush RC | 160 | 44Offset
  • REAR SHOCK Rockshox Deluxe Select Debonair | 185x55 Trunnion

Cockpit

  • HANDLEBAR RaceFace Aeffect R35 | B:35mm | R:20mm | W:780mm
  • STEM V2 Pro | B:35mm | L:40mm | 0°
  • SADDLE SDG BELAIR Max eMTB
  • SEATPOST TranzX Dropper | 31.6mm | 1x Lever
  • GRIPS Devinci | w/lock-on

Brakes

  • FRONT BRAKE SRAM DB8
  • REAR BRAKE SRAM DB8
  • FRONT ROTOR SRAM Centerline | 220mm
  • ROTORS SRAM Centerline | 200mm

Drivetrain

  • REAR DERAILLEUR SRAM Eagle 70 12s
  • REAR SHIFTER SRAM Eagle 70 12s
  • CRANKARM SRAM GX Bosch | 165mm
  • CHAINRING Sram XX Eagle 34T Bosch EMTB
  • CASSETTE SRAM XS1270 T-TYPE | 12s | 10-52T
  • CHAIN SRAM
  • CHAIN SRAM Eagle 70

Wheels

  • FRONT RIM V2 Comp 29 | 29mm inner | TR
  • FRONT HUB Formula DC-711 | Sealed | 6bolts | TA 15x110mm
  • REAR HUB Formula | DHT-148 | 6 Bolts TA 12x148 BOOST
  • REAR RIM V2 Comp 27.5 | 29mm inner | TR
  • SPOKES Sapim Stainless 14G w/Nylok
  • FRONT TIRE Maxxis Assegai | 29x2.5WT | 3C | EXO | TR | MaxxTerra
  • REAR TIRE Maxxis Minion DHR II | 27.5x2.5 | 3C | EXO+ | TR | MaxxTerra

E-System

  • COMPUTER BOSCH System controller BRC3100
  • DRIVE UNIT Bosch Performance Line SX, 55NM, 600W
  • BATTERY Bosch CompactTube 400 | 36V | 400 Wh

FRAME TECH SPECS

Rear travel 150 mm
Front travel 160 mm
Wheel size Mixed-Wheel (27,5'' rear & 29'' front)
Rear tire clearance 27,5'' x 2.6”
Rear hub spacing 12 x 148 Boost
Max & min chainring clearance 38T - 32T
Chainline 55 mm
Derailleur hanger UDH™
Caliper mount 200 mm Post Mount
Max rear rotor size 220 mm
Seat tube diameter 31.6 mm ID / 34.9 mm OD
Dropper post length S → 125 mm / M → 150 mm / L → 170 mm / XL → 200 mm
Seatpost max insertion S → 225 mm / M → 250 mm / L → 275 mm / XL → 300 mm
Headset Top ZS44 | Bottom ZS56
Cable routing Internal
Rear shock dimension Trunnion | 185 x 55 mm
Rear shock hardware Top NA | Bottom 35 x 10 mm
Linkage bearing type Enduro™ double-lip sealed
Fork dimensions Axle-to-Crown measurement 571 mm / Offset 44 mm
Chain guide mount Low Direct Mount
Drive unit Bosch Performance Line SX | Smart System
Battery Bosch CompactTube 400 - 400Wh
Speed sensor Type Rotor magnet & dropout sensor
Frame material 6061-T6 Aluminum | Optimum G04
