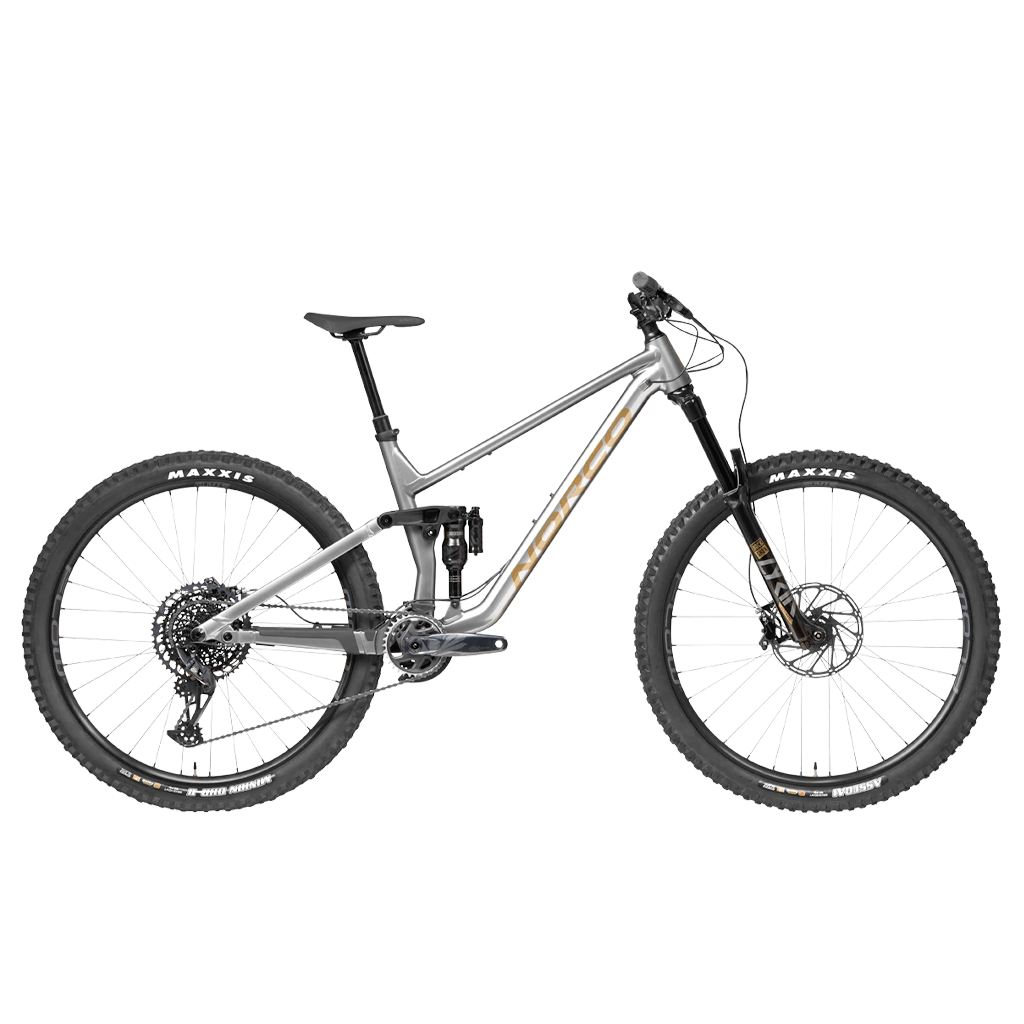

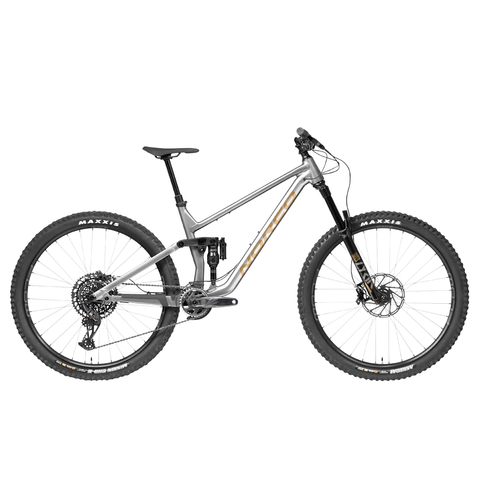

The Norco Sight A1 29 is a mountain bike with an aluminum all-mountain frame, 150 mm of rear travel and a 160 mm RockShox Lyrik Ultimate fork.
Its 29-inch build includes SRAM GX Eagle shifting, four-piston brakes with 200/180 mm rotors and the Ride Aligned setup system.
Technical specifications
Frame
| Component |
Specification |
| Frame |
Aluminum All-Mountain, 150mm Travel, 27.5" and 29" Options, UDH, Ride Aligned™ |
Suspension
| Component |
Specification |
| Fork |
RockShox Lyrik Ultimate, Charger 2 RC2, 160mm, 37mm Offset (27.5), 44mm Offset (29) |
| Rear Shock |
RockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion |
Cockpit
| Component |
Specification |
| Handlebar |
Deity Ridgeline, 800mm, 25mm Rise |
| Stem |
Alloy, 40mm Length, 35mm Clamp |
| Seatpost |
OneUp Adjustable Dropper, 34.9mm, 150mm (S), 180mm (M, L), 210 (XL) |
| Headset |
FSA #57 E Sealed Bearing, Tapered |
| Saddle |
Fizik Alpaca Terra, Wingflex |
| Grips |
DMR DeathGrip Soft, Thin (S, M), Thick (L, XL) |
| Seatpost Clamp |
Norco design alloy nutted clamp 38.5mm |
Drivetrain
| Component |
Specification |
| Rear Shifter |
SRAM GX Eagle |
| Rear Derailleur |
SRAM GX Eagle |
| Crankset |
SRAM GX Eagle, 34T (27.5), 32T (27.5 S), 32T (29), 170mm |
| Bottom Bracket |
Sealed Bearing DUB, BSA |
| Chain |
SRAM Eagle |
| Chain Guide |
e*thirteen Vario Top Guide, DMB |
Brakes
| Component |
Specification |
| Front Brake |
SRAM Code RSC, 4 Piston, Metallic Pads |
| Front Brake Rotor |
SRAM CenterLine, 200mm |
| Rear Brake |
SRAM Code RSC, 4 Piston, Metallic Pads |
| Rear Brake Rotor |
SRAM CenterLine, 180mm |
| Brake Levers |
SRAM Code RSC |
Wheels
| Component |
Specification |
| Front Hub |
DT Swiss 350, 15x110mm Boost, 6 Bolt |
| Rear Hub |
DT Swiss 350, 12x148mm Boost, XD, 6 Bolt, 36T Engagement |
| Rims |
Stan's Flow S2, 32H |
| Front Tire |
Maxxis Assegai 2.5" 3C Maxx Terra/EXO+/TR, Folding |
| Rear Tire |
Maxxis Minion DHR II 2.4" WT 3C, Maxx Terra/EXO+/TR, Folding |
| Spokes/Nipples |
DT Swiss Competition DB Stainless Black |
| Valves |
Stan's 35mm Tubeless Presta |
| Sealant |
Stan's - 200ml |
Other specifications
| Component |
Specification |
| Cassette |
SRAM Eagle XG 1275, 10-52T |
Manufacturer resources
Specifications are subject to change without notice and may differ from the photos.
