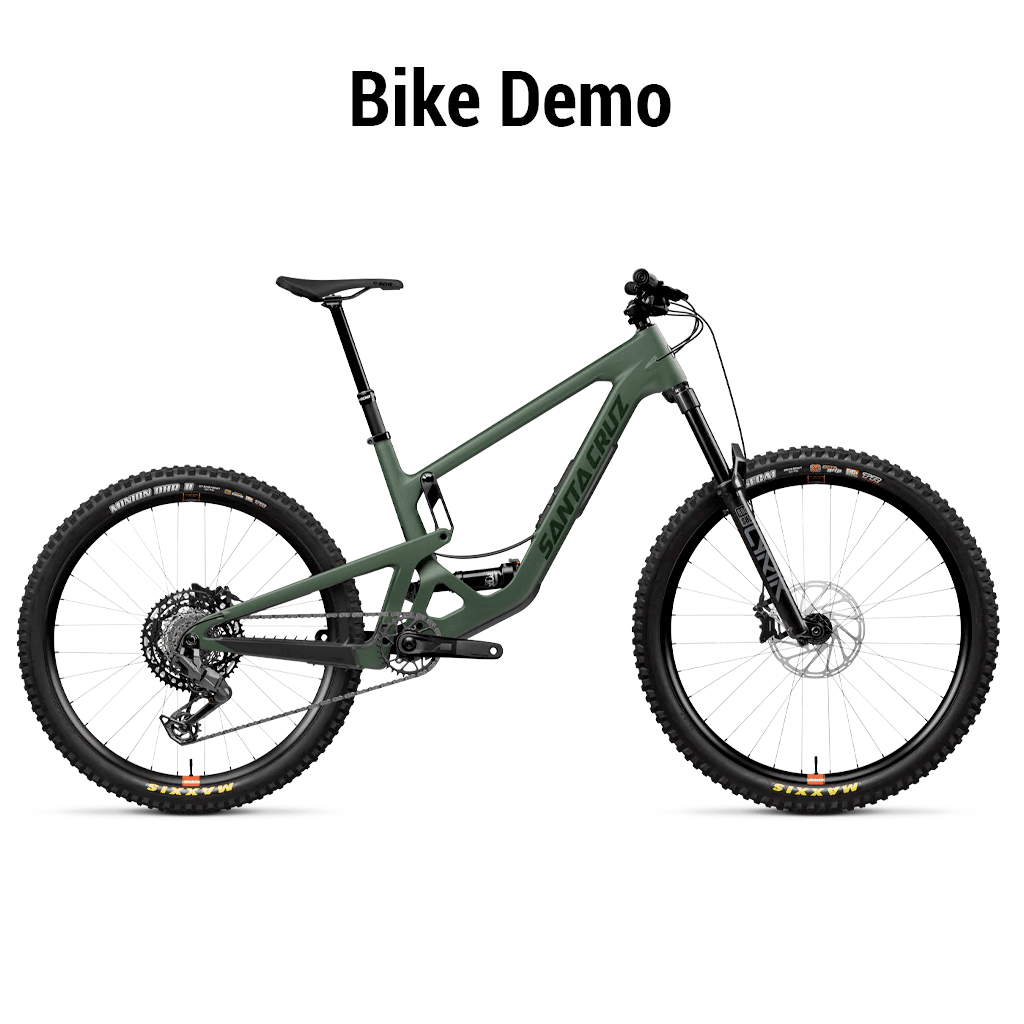

This demo Santa Cruz Bronson 5 C Eagle 70 is a mixed-wheel mountain bike with a Carbon C frame and 150 mm of VPP rear travel.
A 160 mm RockShox Lyrik Base fork, FOX Float Rhythm shock and mechanical SRAM Eagle 70 drivetrain equip this build.
Warranty and bearings
Manufacturer lifetime warranty. Santa Cruz provides free replacement pivot bearings to the original owner for as long as they own the bike.
Technical specifications
Frame
| Component |
Specification |
| Material |
Carbon C |
| Frame |
Carbon C MX 150mm Travel VPP™ |
| Travel |
150mm |
| Wheel Size |
MX |
Suspension
| Component |
Specification |
| Fork |
RockShox Lyrik Base, 160mm |
| Shock |
FOX Float Rhythm, 230x57.5 |
Cockpit
| Component |
Specification |
| Grips / Bar Tape |
Santa Cruz Bicycles House Grips |
| Handlebars |
Burgtec Alloy Bar S: 35x760mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 30mm Rise -or- e13 TRS Base Bar S: 35x760mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise |
| Headset |
Cane Creek 10 IS Integrated Headset |
| Saddle |
SDG Bel-Air V3, Steel |
| Seatpost |
SDG Tellis Dropper, 31.6 S: 125mm, M: 150, L: 170mm, XL/XXL: 200mm |
| Stem |
OneUp Enduro Stem All Sizes: 42mm -or- e13 TRS Base Stem All Sizes: 40mm |
| Headset |
Integrated (IS41/52) |
Drivetrain
| Component |
Specification |
| Bottom Bracket |
SRAM DUB 73mm MTB Wide BB |
| Chain |
SRAM 70 Eagle T-Type, Flattop, 12spd |
| Chainguide |
N/A |
| Crankset |
SRAM 70 Eagle DUB T-Type Crankset, 32t All Sizes: 170mm |
| Rear Derailleur |
SRAM 70 Eagle T-Type, 12spd |
| Right Shifter |
SRAM 90 Eagle T-Type, 12spd |
Brakes
| Component |
Specification |
| Brakes |
SRAM DB8 |
| Front Rotor |
SRAM Centerline, 200mm |
| Rear Rotor |
SRAM Centerline, 200mm |
Wheels
| Component |
Specification |
| Front Rim |
Reserve 30|TR AL |
| Front Hub |
SRAM MTH 716, 15x110, 6-Bolt, 32h |
| Front Tire |
Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
| Rear Rim |
Reserve 30|TR AL |
| Rear Hub |
SRAM MTH 746, 12x148, HG, 6-Bolt, 32h |
| Rear Tire |
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ |
| Valves |
Reserve Fillmore Valves |
Frame specifications
| Component |
Specification |
| Bottom Bracket Shell |
Threaded 73mm |
| Rear Brake Mount |
180mm PM |
| Chainguide standard |
ISCG05 |
| Shock Length |
230mm |
| Fork Axle to Crown |
571mm |
| Fork Offset |
44mm |
| Front Derailleur Mount |
None |
| Max Chainring Size |
36t |
| Max Rotor Size |
220mm |
| Max Tire Clearance |
2.5" |
| Rear Spacing |
148mm |
| Rear Travel |
150mm |
| Recommended Sag |
30% |
| Seat Clamp Diameter |
36.4mm |
| Shock Mounting Hardware Lower |
30x8 |
| Shock Mounting Hardware Upper |
40x10 |
| Shock Stroke |
57.5mm |
| Suspension System |
VPP |
| UDH Compatible |
Yes |
| Water Bottle Mounts |
1 |
Weight
| Component |
Specification |
| Weight |
34.79lbs / 15.78kg |
Other specifications
| Component |
Specification |
| Cassette |
SRAM XS 1270 Eagle T-Type, 10-52t |
Specifications are subject to change without notice and may differ from the photos.
Assembly and shipping
Assembled by our certified mechanics, in our workshop. Online orders ship 90% assembled.
