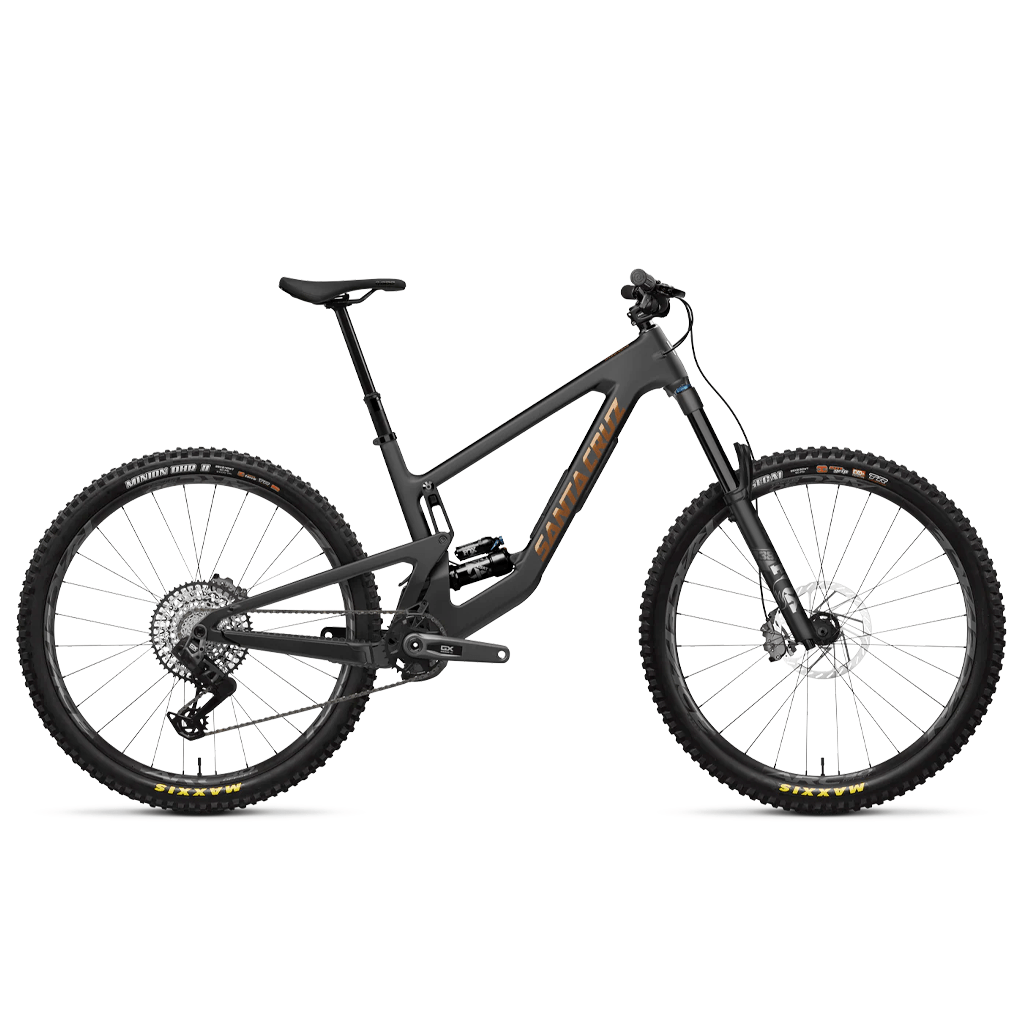

The Santa Cruz Megatower 2 C GX AXS is a 29-inch enduro mountain bike with a Carbon C frame and 170 mm of rear travel in this build.
It uses SRAM GX Eagle AXS T-Type shifting; the listed fork alternatives are a 170 mm FOX 38 Float Performance Elite or RockShox ZEB Select+.
Warranty and bearings
Manufacturer lifetime warranty. Santa Cruz provides free replacement pivot bearings to the original owner for as long as they own the bike.
Technical specifications
Frame
| Component |
Specification |
| Material |
Carbon C |
| Travel |
170mm |
| Wheel Size |
29 |
Suspension
| Component |
Specification |
| Fork |
FOX 38 Float Performance Elite, Grip X2, 170mm -or- RockShox Zeb Select+, 170mm |
| Shock |
Fox Float X Performance Elite, 230x65 |
Cockpit
| Component |
Specification |
| Grips / Bar Tape |
Santa Cruz Bicycles House Grips |
| Handlebars |
Santa Cruz 35 Carbon Bar, 800mm |
| Headset |
Cane Creek 40 IS Integrated Headset |
| Saddle |
SDG Bel-Air V3, Lux-Alloy Atmos |
| Seatpost |
OneUp Dropper Post, 31.6 |
| Stem |
Burgtec Enduro MK3, 42mm |
| Headset |
Integrated (IS41/52) |
Drivetrain
| Component |
Specification |
| Bottom Bracket |
SRAM DUB 73mm MTB Wide BB |
| Chain |
SRAM GX Eagle T-Type, Flattop, 12spd |
| Chainguide |
OneUp Bash Guide |
| Crankset |
SRAM GX Eagle DUB T-Type Crankset, 32t |
| Rear Derailleur |
SRAM GX Eagle AXS T-Type, 12spd |
| Right Shifter |
SRAM AXS Pod Bridge |
Brakes
| Component |
Specification |
| Brakes |
SRAM Maven Bronze Stealth |
| Front Rotor |
SRAM HS2 200mm |
| Rear Rotor |
SRAM HS2 200mm |
Wheels
| Component |
Specification |
| Front Rim |
Reserve 30|SL AL 6069 -or- Raceface ARC 30 |
| Front Hub |
DT Swiss 370, 15x110, 6-Bolt, 28h |
| Front Tire |
Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
| Rear Rim |
Reserve 30|HD AL 6069 -or- Raceface ARC 30 HD |
| Rear Hub |
DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 32h |
| Rear Tire |
Maxxis Minion DHR II 29x2.4" 3C MaxxTerra, Double Down |
Frame specifications
| Component |
Specification |
| Bottom Bracket Shell |
73mm Threaded |
| Rear Brake Mount |
200mm PM |
| Shock Length |
230mm |
| Fork Offset |
44mm |
| Front Derailleur Mount |
No compatibility |
| Max Chainring Size |
36t |
| Max Tire Clearance |
2.5" |
| Seat Clamp Diameter |
36.4mm |
| Seat Post Diameter |
31.6mm |
| Shock Bushing Size Front |
30x8 |
| Shock Bushing Size Rear |
30x8 |
| Shock Stroke |
62.5mm or 65mm |
| Suspension System |
VPP |
| Water Bottle Mounts |
1 |
Weight
| Component |
Specification |
| Weight |
35.08 lbs / 15.91 kg |
Other specifications
| Component |
Specification |
| Cassette |
SRAM GX Eagle T-Type, 10-52t |
Specifications are subject to change without notice and may differ from the photos.
Assembly and shipping
Assembled by our certified mechanics, in our workshop. Online orders ship 90% assembled.
