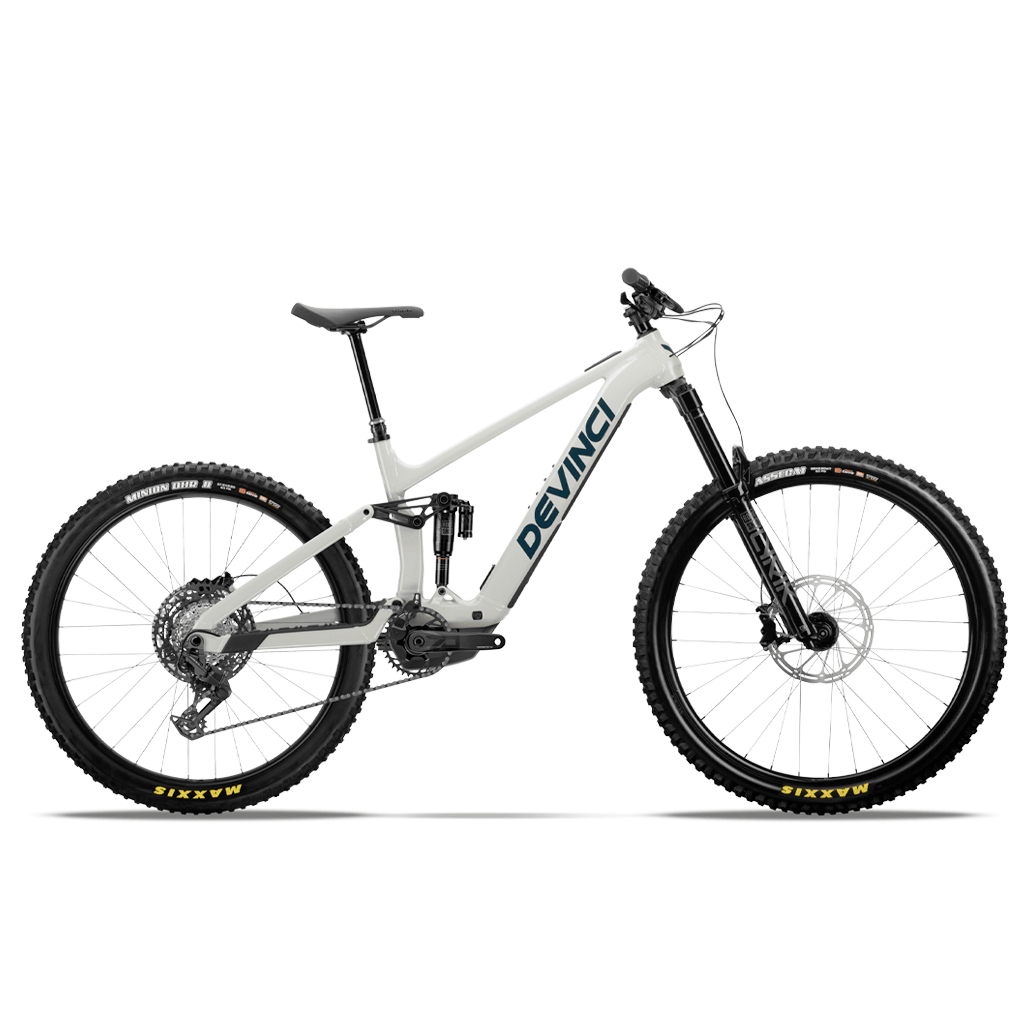

The Devinci E-Troy Lite AL Eagle 70 MX is a Canadian-made electric mountain bike with a 150 mm rear-travel frame and a 160 mm RockShox Lyrik fork.
Bosch Performance Line SX assistance and a 400 Wh CompactTube battery are paired with mixed wheels and a mechanical SRAM Eagle 70 drivetrain.
Technical specifications
Frame
| Component |
Specification |
| Wheel size |
Mixed-Wheel (27,5'' rear & 29'' front) |
Suspension
| Component |
Specification |
| Suspension fork |
RockShox Lyrik | Rush RC | 160 | 44Offset |
| Rear shock |
Rockshox SuperDeluxe Base | 185x55T |
Cockpit
| Component |
Specification |
| Headset |
Top ZS44 | Bottom ZS56 |
| Headset |
FSA Orbit | 1.5 | Zero Stack |
| Seat clamp |
Alloy CNC | 34.9mm |
| Handlebar |
V2 Pro | B:35mm | R:30mm | W:800mm |
| Stem |
V2 Pro | B:35mm | L:40mm | 0° |
| Saddle |
SDG BELAIR Max eMTB |
| Seatpost |
TranzX Dropper | 31.6mm |
| Seatpost lever |
TranzX |
| Grips |
Devinci | w/lock-on |
Drivetrain
| Component |
Specification |
| Rear derailleur |
SRAM Eagle 70 12s |
| Rear shifter |
SRAM Eagle 70 12s |
| Crankarm |
SRAM Eagle70 | 160mm |
| Chainring |
Sram Eagle 34T Bosch EMTB |
| Chain |
SRAM Eagle 70 |
Brakes
| Component |
Specification |
| Front brake |
SRAM DB8 |
| Rear brake |
SRAM DB8 |
| Front rotor |
SRAM Centerline | 220mm |
| Rear rotor |
SRAM Centerline | 200mm |
Wheels
| Component |
Specification |
| Front rim |
V2 Comp | 29mm inner | TR |
| Front hub |
Formula DC-611 | Sealed | 6bolts | TA 15x110mm |
| Rear hub |
Formula | DHT-148 | 6 Bolts TA 12x148 BOOST |
| Rear rim |
V2 Comp | 29mm inner | TR |
| Spokes |
Sapim Stainless 14G w/Nylok |
| Front tire |
Maxxis Assegai | 29x2.5WT | 3C | EXO+ | TR | MaxxGrip |
| Rear tire |
Maxxis Minion DHR II | 27.5x2.5 | 3C | EXO+ | TR | MaxxTerra |
Electric components
| Component |
Specification |
| Drive unit |
Bosch Performance Line SX | Smart System |
| Battery |
Bosch CompactTube 400 - 400Wh |
| Computer |
BOSCH System controller BRC3100 |
| Drive unit |
Bosch Performance Line SX | 55NM | 600W |
| Battery |
Bosch CompactTube 400 | 36V | 400 Wh |
Frame specifications
| Component |
Specification |
| Rear travel |
150 mm |
| Front travel |
160 mm |
| Rear tire clearance |
27,5'' x 2.6” |
| Rear hub spacing |
12 x 148 Boost |
| Max & min chainring clearance |
38T - 32T |
| Chainline |
55 mm |
| Derailleur hanger |
UDH™ |
| Caliper mount |
200 mm Post Mount |
| Max rear rotor size |
220 mm |
| Seat tube diameter |
31.6 mm ID / 34.9 mm OD |
| Dropper post length |
S → 125 mm / M → 150 mm / L → 170 mm / XL → 200 mm |
| Seatpost max insertion |
S → 225 mm / M → 250 mm / L → 275 mm / XL → 300 mm |
| Cable routing |
Internal |
| Rear shock dimension |
Trunnion | 185 x 55 mm |
| Rear shock hardware |
Top NA | Bottom 35 x 10 mm |
| Linkage bearing type |
Enduro™ double-lip sealed |
| Fork dimensions |
Axle-to-Crown measurement 571 mm / Offset 44 mm |
| Chain guide mount |
Low Direct Mount |
| Speed sensor Type |
Rotor magnet & dropout sensor |
| Frame material |
6061-T6 Aluminum | Optimum G04 |
Weight
| Component |
Specification |
| Weight |
20.70 kg / 45.64 lb |
Other specifications
| Component |
Specification |
| Cassette |
SRAM XS1270 T-TYPE | 12s | 10-52T |
Approximate complete-bike weight for size M; subject to change.
Specifications are subject to change without notice and may differ from the photos.
Assembly and shipping
Assembled by our certified mechanics, in our workshop. Online orders ship 90% assembled.
